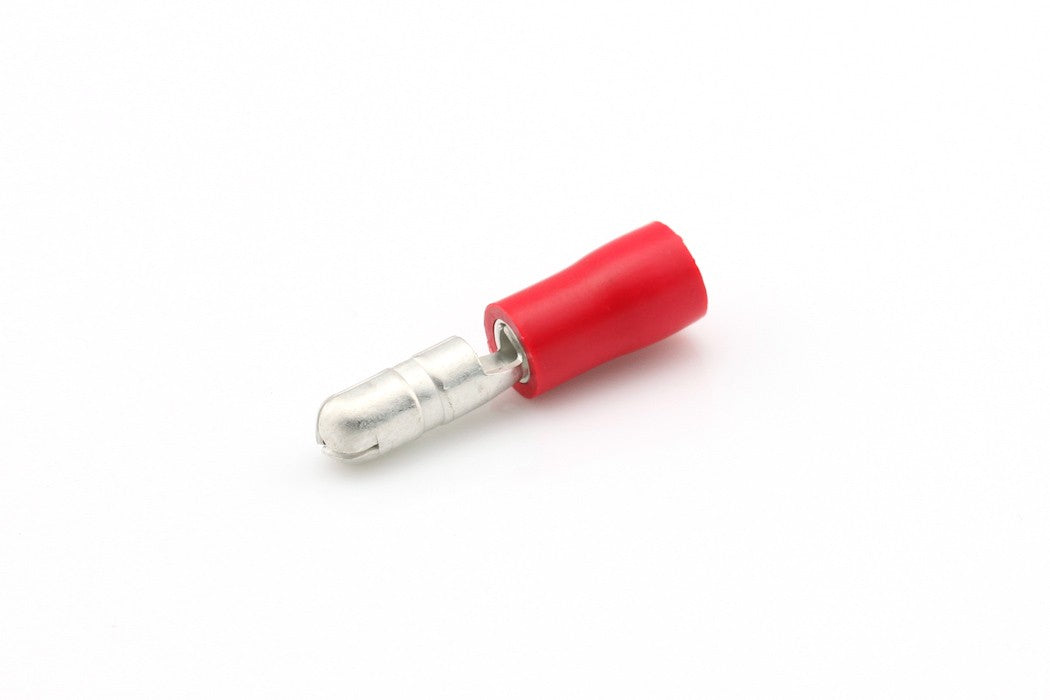

Rondsteker 0.5-1.5mm² rood Ø 4.0mm
| Kenmerken | Beschrijving |
|---|---|
| Type kabelschoenen | Bullet |
| Type Insulation | Vinyl geisoleerd |
| Kabel diameter | Rood (0.5-1.5 mm²) |
| Met Trekontlasting | Ja |
| Max. Working Voltage | 300 Volt |
| Temperature Rating | 75 degrees |
| Tabsize | Ø 4.0mm |
| Length ( L ) | 21.5 mm |
| Diameter ( d2 ) | Ø 4.7mm |
| Insulation Height ( E ) | 10.5mm |
| Material | Vinyl |
| According requirements | UL94V0 |
