Kabelschoen rood Lip Vorkkabelschoen Ø 3.7mm á 10 stuks
Normale prijs
€1,00
excl. BTW
€1,21
incl. BTW

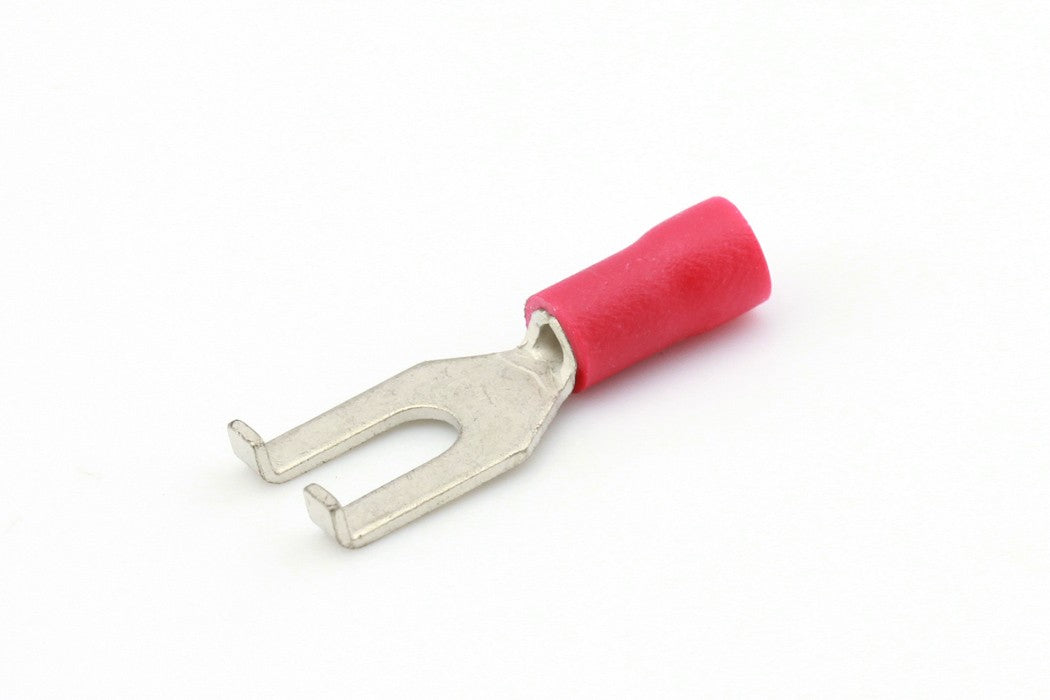

Lip Vorkkabelschoen 0.5-1.5mm² rood Ø 3.7mm
| Kenmerken | Beschrijving |
|---|---|
| Type kabelschoenen | Lipped Fork |
| Type Insulation | Vinyl geisoleerd |
| Kabel diameter | Rood (0.5-1.5 mm²) |
| Max. Working Voltage | 300 Volt |
| Temperature Rating | 75 degrees |
| Tabsize | 8.5mm |
| Length ( L ) | 14.5 mm |
| Diameter ( d2 ) | Ø 4.0mm |
| Insulation Height ( E ) | 10.0mm |
| Diameter ( D ) | Ø 3.7mm |
| Material | Vinyl |
| According requirements | UL94V0 |
