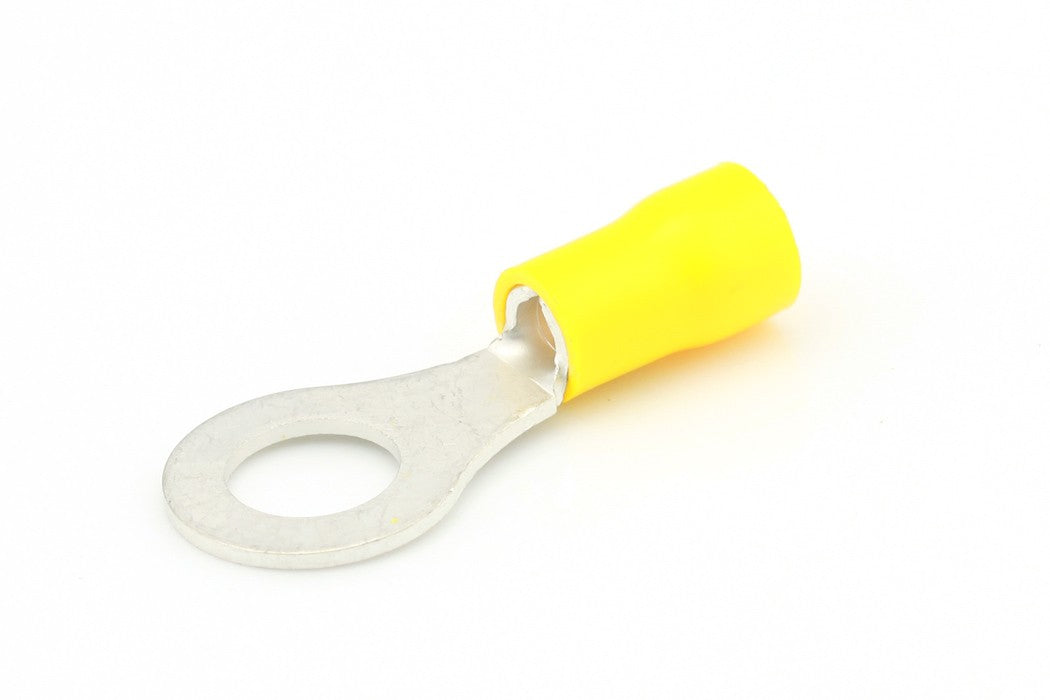

Kabelschoen geel Ringkabelschoen Ø 8.4mm met bus á 10 stuks
Normale prijs
€2,15
excl. BTW
€2,60
incl. BTW
Ringkabelschoen 2.5-6.0mm² geel Ø 8.4mm met bus
| Kenmerken | Beschrijving |
|---|---|
| Type kabelschoenen | Ring |
| Type Insulation | Vinyl geisoleerd |
| Kabel diameter | Geel (4-6 mm²) |
| Met Trekontlasting | Ja |
| Max. Working Voltage | 300 Volt |
| Temperature Rating | 75 degrees |
| Tabsize | 15.0mm |
| Length ( L ) | 34.9 mm |
| Diameter ( d2 ) | Ø 6.7mm |
| Insulation Height ( E ) | 14.0mm |
| Diameter ( D ) | Ø 8.4mm |
| Material | Vinyl |
| According requirements | UL94V0 |
