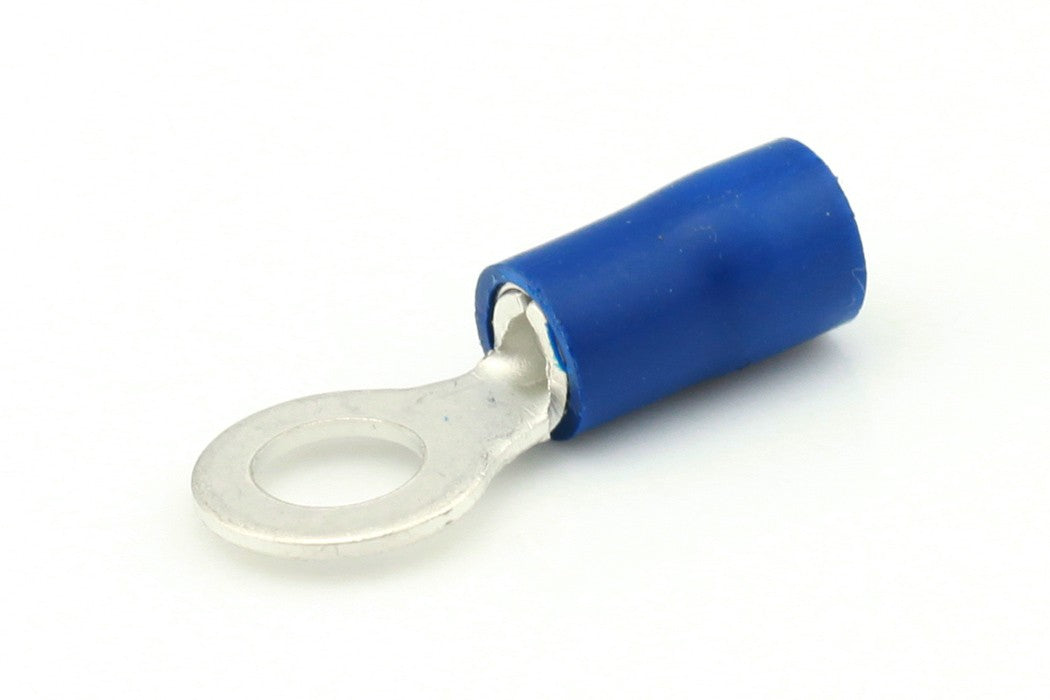

Ringkabelschoen 1.5-2.5mm² blauw Ø 5.3mm met bus
| Kenmerken | Beschrijving |
|---|---|
| Type kabelschoenen | Ring |
| Type Insulation | Vinyl geisoleerd |
| Kabel diameter | Blauw (1.5-2.5 mm²) |
| Met Trekontlasting | Ja |
| Max. Working Voltage | 300 Volt |
| Temperature Rating | 75 degrees |
| Tabsize | 9.5mm |
| Length ( L ) | 23.0 mm |
| Diameter ( d2 ) | Ø 4.9mm |
| Insulation Height ( E ) | 11.0mm |
| Diameter ( D ) | Ø 5.3mm |
| Material | Vinyl |
| According requirements | UL94V0 |
