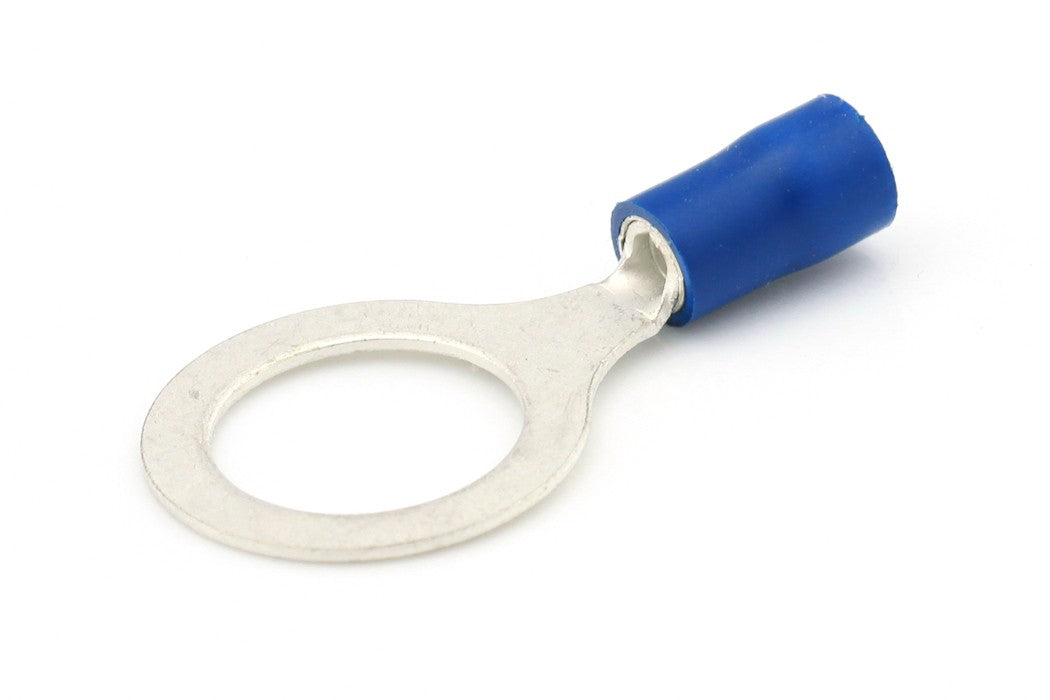

Ringkabelschoen 1.5-2.5mm² blauw Ø 12.0mm met bus
| Kenmerken | Beschrijving |
|---|---|
| Type kabelschoenen | Ring |
| Type Insulation | Vinyl geisoleerd |
| Kabel diameter | Blauw (1.5-2.5 mm²) |
| Met Trekontlasting | Ja |
| Max. Working Voltage | 300 Volt |
| Temperature Rating | 75 degrees |
| Tabsize | 13.7mm |
| Length ( L ) | 31.9 mm |
| Diameter ( d2 ) | Ø 6.7mm |
| Insulation Height ( E ) | 11.0mm |
| Diameter ( D ) | Ø 12.0mm |
| Material | Vinyl |
| According requirements | UL94V0 |
