Accu kabel 25mm² soepel zwart
Normale prijs
€7,38
incl. BTW
Use this text to encourage communication or promote sharing on social networks.

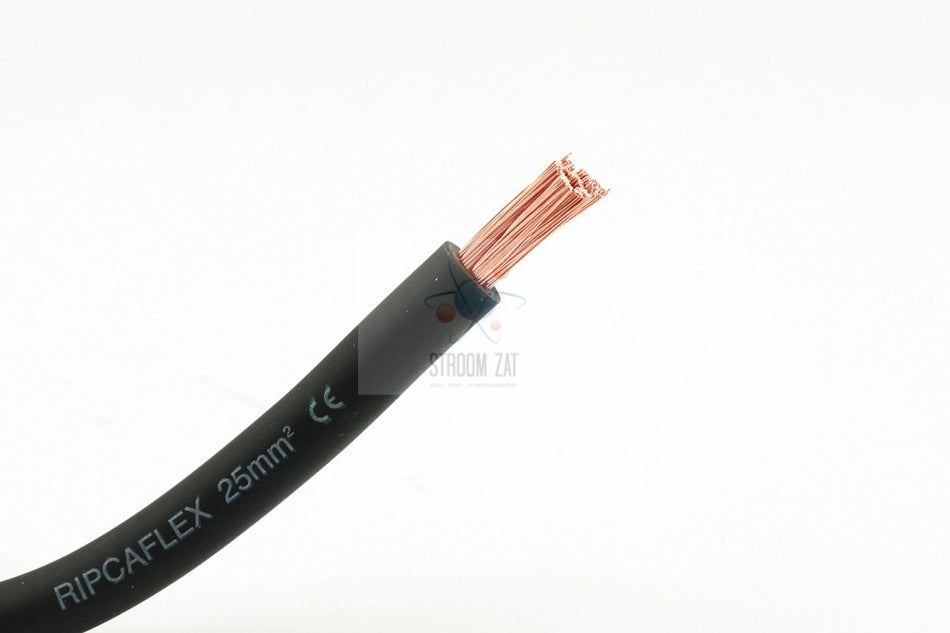

Soepel accu kabel 25mm² zwart. Prijs per meter, wilt u er kabel ogen aangeperst hebben, selecteert u dan ook de kabel ogen en de arbeid hiervoor (arbeid kabeloog)
Technische specificaties
| Kenmerken | Beschrijving |
|---|---|
| Hoofdkleur | Rood |
| Kabeldikte | 25.0mm² |
| Nominal conductor construction (Wires x Ø mm) | 324xØ 0.30mm |
| Max conductor resistance (Ohm/per km) | 0.85 Ohm/km |
| Outer Cable diameter (mm) | 10.35 - 10.65mm² |
| Minimum Insulation Thickness (mm) | 1.25mm |
| Insulation Type | Soft PVC according IEC 60332-1 |
| Insulation Hardness | 70± 5 Shore A |
| Max. Working Voltage | 600V |
| Temperature Rating | +5ºC/+70ºC |
| According requirements | IEC332-1/CEI EN 50265 |
